IC PWR SWITCH N-CHAN 1:1 16WQFN

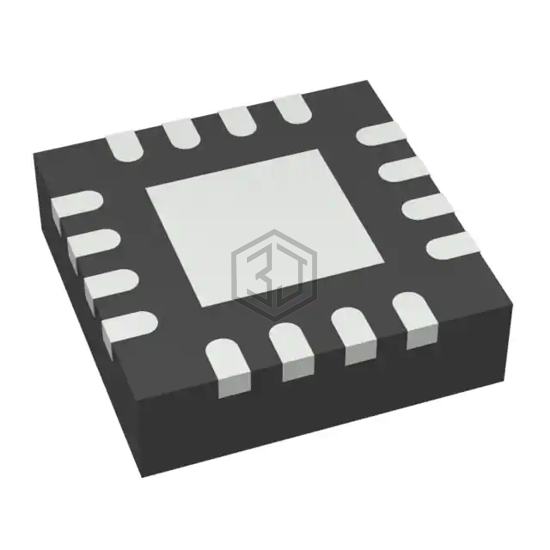

TPS2546QRTERQ1 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC PWR SWITCH N-CHAN 1:1 16WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - load 4.5V ~ 5.5V, package / case 16-WFQFN Exposed Pad.
In Stock: 2,989
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Switch Type | USB Switch |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 4.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | 2.5A |
| Rds On (Typ) | 73mOhm |
| Input Type | Non-Inverting |
| Features | Load Discharge |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-WQFN (3x3) |
| Package / Case | 16-WFQFN Exposed Pad |
TPS2546QRTERQ1 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS1H200AQDGNRQ1 | Texas Instruments | IC PWR DRIVER N-CHAN 1:1 8MSOP | 100% | View |
| TPS2554DRCR | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 10VSON | 100% | View |
| TPS2540RTET | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 16WQFN | 100% | View |
| VN751PT | STMicroelectronics | IC PWR DRIVER N-CHANNEL 1:1 PPAK | 96% | View |
| BTS50902EKAXUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-14 | 86% | View |
| TPS2561DRCR | Texas Instruments | IC PWR SWITCH N-CHAN 1:2 10VSON | 77% | View |
Submit your RFQ for TPS2546QRTERQ1 and get a quote within 24 hours.
