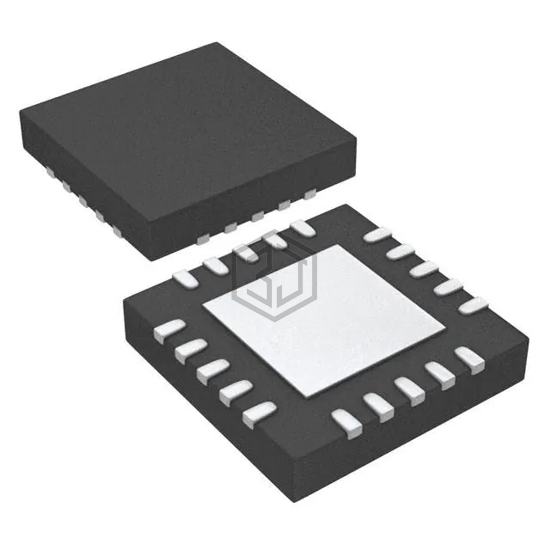

IC PWR SWITCH N/P-CH 1:3 20VQFN
TPS2505B1RGWR is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC PWR SWITCH N/P-CH 1:3 20VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 20-VQFN Exposed Pad.
In Stock: 6,571
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | USB Switch |
| Number of Outputs | 3 |
| Ratio - Input:Output | 1:3 |
| Output Configuration | High Side or Low Side |
| Output Type | N/P-Channel |
| Interface | Logic |
| Voltage - Load | 1.8V ~ 5.25V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.1A |
| Rds On (Typ) | 80mOhm (Max) |
| Input Type | Non-Inverting |
| Features | Boost Converter, Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-VQFN (5x5) |
| Package / Case | 20-VQFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS2500DRCR | Texas Instruments | IC PWR SWITCH N/P-CH 1:2 10VSON | 83% | View |
| TPS2500DRCT | Texas Instruments | IC PWR SWITCH N/P-CH 1:2 10VSON | 83% | View |
| TPS2501DRCT | Texas Instruments | IC PWR SWITCH N/P-CH 1:2 10VSON | 83% | View |
| TPS2501DRCR | Texas Instruments | IC PWR SWITCH N/P-CH 1:2 10VSON | 83% | View |
Submit your RFQ for TPS2505B1RGWR and get a quote within 24 hours.
