2-CH, 5.7-V, 6-A, 14-M, LOAD SWI

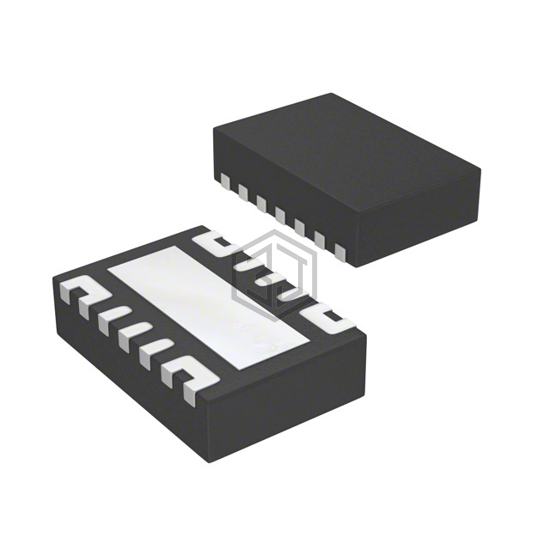

TPS22976ADPUR is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. 2-CH, 5.7-V, 6-A, 14-M, LOAD SWI. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 14-PowerWFDFN.
In Stock: 2,532
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 2.5V ~ 5.7V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 6A |
| Rds On (Typ) | 14mOhm |
| Input Type | - |
| Features | Load Discharge |
| Fault Protection | Over Temperature |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-WSON (3x2) |
| Package / Case | 14-PowerWFDFN |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS65286RHDR | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 28VQFN | 90% | View |
| TPS22969DNYR | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 8WSON | 88% | View |
| BTT60301ERAXUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 TDSO-14 | 75% | View |
| BTS5014SDAAUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 TO252-5 | 74% | View |
| VN750PSTR-E | STMicroelectronics | IC PWR DRIVER N-CHANNEL 1:1 8SO | 74% | View |
| AOZ1363DI | Alpha & Omega Semiconductor Inc. | IC PWR SWITCH N-CHAN 1:1 12DFN | 60% | View |
Submit your RFQ for TPS22976ADPUR and get a quote within 24 hours.
