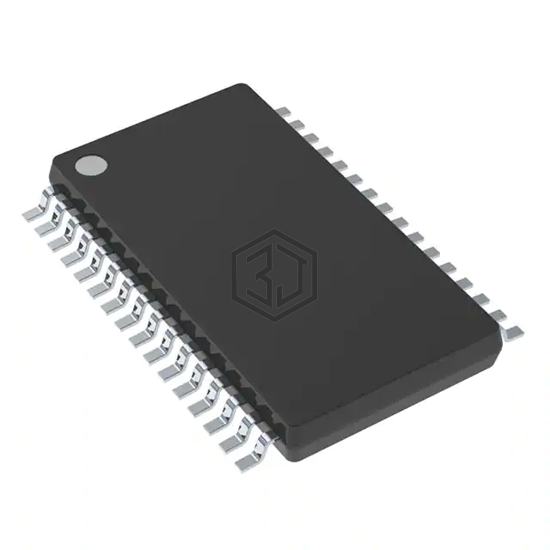

IC PWR SWITCH 1:2 32HTSSOP
TPS2236DAPR is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC PWR SWITCH 1:2 32HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 32-TSSOP (0.240", 6.10mm Width) Exposed Pad.
In Stock: 8,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | ExpressCard™ Switch |
| Number of Outputs | 6 |
| Ratio - Input:Output | 1:2 |
| Output Configuration | High Side |
| Output Type | - |
| Interface | - |
| Voltage - Load | 1.5V, 3.3V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.3A |
| Rds On (Typ) | 45mOhm |
| Input Type | - |
| Features | Power Good, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-HTSSOP |
| Package / Case | 32-TSSOP (0.240", 6.10mm Width) Exposed Pad |
TPS2236DAPR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS2231RGPR | Texas Instruments | IC PWR SWITCH 1:1 20QFN | 88% | View |
| TPS2231PW | Texas Instruments | IC PWR SWITCH 1:1 20TSSOP | 88% | View |
| TPS2231MRGPR-3 | Texas Instruments | IC PWR SWITCH 1:1 20QFN | 88% | View |
| TPS2231PWR | Texas Instruments | IC PWR SWITCH 1:1 20TSSOP | 88% | View |
| TPS2231MRGPR | Texas Instruments | IC PWR SWITCH 1:1 20QFN | 88% | View |
| MAX14915AFM+ | Analog Devices Inc./Maxim Integrated | IC PWR DRIVER 1:8 48QFN | 66% | View |
Submit your RFQ for TPS2236DAPR and get a quote within 24 hours.
