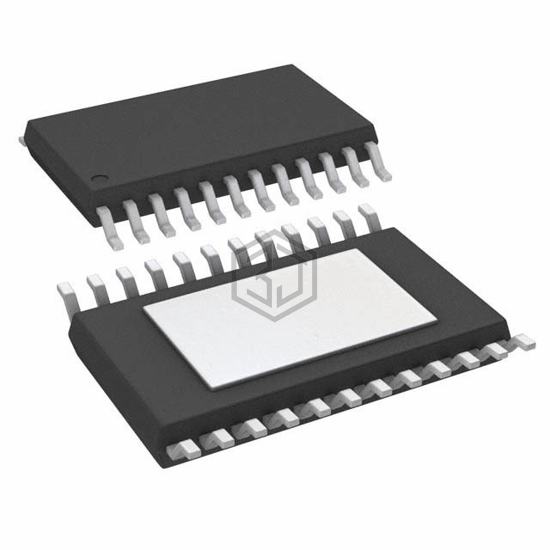

IC PWR SWITCH 3:4 24HTSSOP
TPS2224APWPR is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC PWR SWITCH 3:4 24HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 24-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 2,546
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | PCMCIA Switch |
| Number of Outputs | 4 |
| Ratio - Input:Output | 3:4 |
| Output Configuration | High Side |
| Output Type | - |
| Interface | Serial |
| Voltage - Load | 3.3V, 5V, 12V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1A |
| Rds On (Typ) | 95mOhm |
| Input Type | - |
| Features | Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-HTSSOP |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS2205IDB | Texas Instruments | IC PWR SWITCH 3:4 30SSOP | 100% | View |
| TPS2206IDBR | Texas Instruments | IC PWR SWITCH 3:4 30SSOP | 100% | View |
| TPS2226ADBR | Texas Instruments | IC PWR SWITCH 3:4 30SSOP | 100% | View |
| TPS2223APWPR | Texas Instruments | IC PWR SWITCH 3:4 24HTSSOP | 100% | View |
| TPS2216DAP | Texas Instruments | IC PWR SWITCH 1:1 32HTSSOP | 100% | View |
| TPS2226ADBRG4 | Texas Instruments | IC PWR SWITCH 3:4 30SSOP | 100% | View |
Submit your RFQ for TPS2224APWPR and get a quote within 24 hours.
