IC PWR SWITCH 3:4 30SSOP

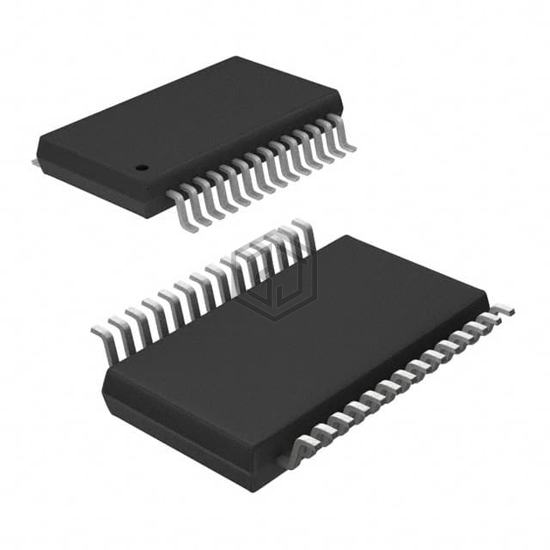

TPS2201IDFR is a PMIC - Power Distribution Switches, Load Drivers manufactured by Texas Instruments. IC PWR SWITCH 3:4 30SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.75V ~ 5.25V, package / case 30-SSOP (0.209", 5.30mm Width).
In Stock: 14,955
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | PCMCIA Switch |
| Number of Outputs | 4 |
| Ratio - Input:Output | 3:4 |
| Output Configuration | High Side |
| Output Type | - |
| Interface | Parallel |
| Voltage - Load | 3.3V, 5V, 12V |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Current - Output (Max) | 1A |
| Rds On (Typ) | 160mOhm (Max) |
| Input Type | - |
| Features | Power Good, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 30-SSOP |
| Package / Case | 30-SSOP (0.209", 5.30mm Width) |
TPS2201IDFR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS2205IDAPR | Texas Instruments | IC PWR SWITCH 3:4 32HTSSOP | 100% | View |
| TPS2206IDB | Texas Instruments | IC PWR SWITCH 3:4 30SSOP | 100% | View |
| TPS2206ADAP | Texas Instruments | IC PWR SWITCH 3:4 32HTSSOP | 100% | View |
| TPS2224ADBG4 | Texas Instruments | IC PWR SWITCH 3:4 24SSOP | 100% | View |
| MP62341DS-LF-Z | Monolithic Power Systems Inc. | IC PWR SWITCH 1:2 8SOIC | 84% | View |
| XC6194AA10ER-G | Torex Semiconductor Ltd | PUSH BUTTON SMART LOAD SWITCH | 65% | View |
Submit your RFQ for TPS2201IDFR and get a quote within 24 hours.
