IC SWITCH SPST DUAL 10VSSOP

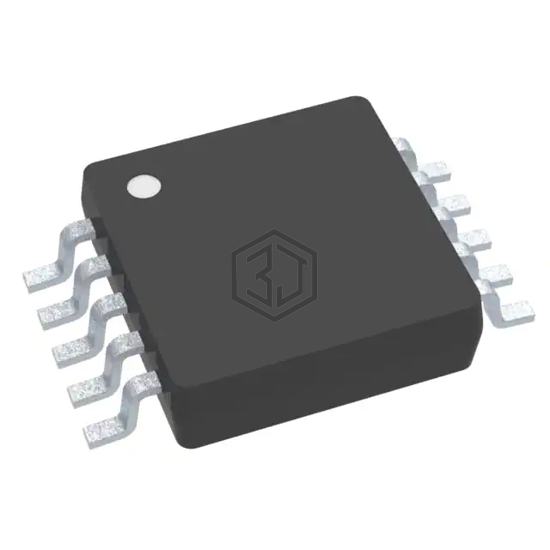

TMUX6122DGSR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH SPST DUAL 10VSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), number of circuits 2.
In Stock: 4,738
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 165Ohm |
| Channel-to-Channel Matching (ΔRon) | 2.4Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 86ns, 76ns |
| -3db Bandwidth | 630MHz |
| Charge Injection | 0.51pC |
| Channel Capacitance (CS(off), CD(off)) | 1.9pF, 2.2pF |
| Current - Leakage (IS(off)) (Max) | 20pA |
| Crosstalk | -110dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
