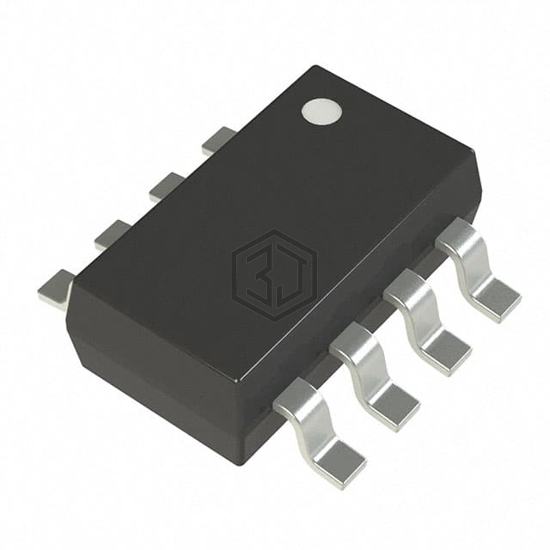

IC SWITCH SPDT SINGLE SOT23-8
TMUX6119DCNR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH SPDT SINGLE SOT23-8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case SOT-23-8, number of circuits 1.
In Stock: 3,563
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 165Ohm |
| Channel-to-Channel Matching (ΔRon) | 2.4mOhm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 86ns, 64ns |
| -3db Bandwidth | 700MHz |
| Charge Injection | -0.19pC |
| Channel Capacitance (CS(off), CD(off)) | 1.9pF, 4.3pF |
| Current - Leakage (IS(off)) (Max) | 20pA |
| Crosstalk | -93dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-8 |
| Supplier Device Package | SOT-23-8 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TMUX6122DGSR | Texas Instruments | IC SWITCH SPST DUAL 10VSSOP | 90% | View |
| TMUX6121DGSR | Texas Instruments | IC SWITCH SPST DUAL 10VSSOP | 90% | View |
| TMUX6123DGSR | Texas Instruments | IC SWITCH SPST DUAL 10VSSOP | 90% | View |
| TMUX6104PWR | Texas Instruments | IC SWITCH SINGLE 14TSSOP | 86% | View |
| ADG1204YCPZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER 4X1 12LFCSP | 78% | View |
| ADG1204YRUZ-REEL | Analog Devices Inc. | IC MULTIPLEXER 4X1 14TSSOP | 78% | View |
Submit your RFQ for TMUX6119DCNR and get a quote within 24 hours.
