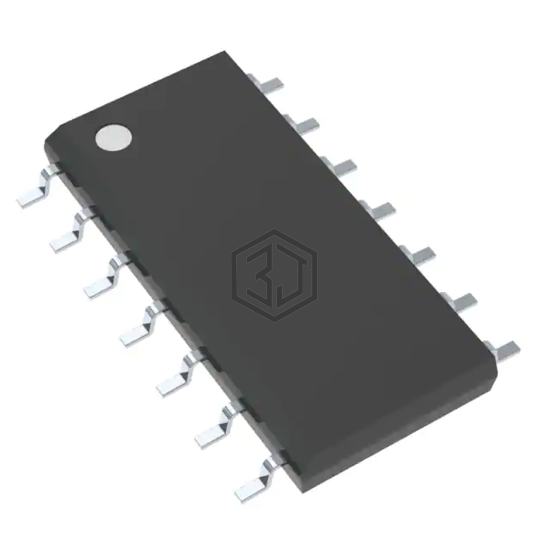

IC GATE NAND 4CH 2-INP 14SOIC
SN74S132DE4 is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND 4CH 2-INP 14SOIC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-SOIC (0.154", 3.90mm Width).
In Stock: 5,868
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Max) | - |
| Current - Output High, Low | 1mA, 20mA |
| Logic Level - Low | 1.1V |
| Logic Level - High | 1.9V |
| Max Propagation Delay @ V, Max CL | 13ns @ 5V, 15pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
SN74S132DE4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74F00SCX | Fairchild Semiconductor | IC GATE NAND 4CH 2-INP 14SOIC | 81% | View |
| 74F00SJ | Fairchild Semiconductor | IC GATE NAND 4CH 2-INP 14SOP | 81% | View |
| SN74S00DRE4 | Texas Instruments | IC GATE NAND 4CH 2-INP 14SOIC | 81% | View |
| DM74LS26MX | Fairchild Semiconductor | NAND GATE, LS SERIES TTL | 76% | View |
| SN74S20D | Texas Instruments | IC GATE NAND 2CH 4-INP 14SOIC | 71% | View |
| SN74F30D | Texas Instruments | IC GATE NAND 1CH 8-INP 14SOIC | 61% | View |
