NAND GATE, LS SERIES TTL

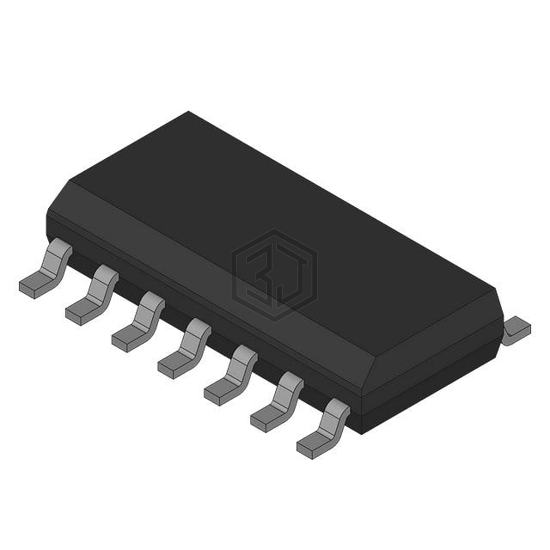

DM74LS26MX is a Logic - Gates and Inverters manufactured by Fairchild Semiconductor. NAND GATE, LS SERIES TTL. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-SOIC (0.154", 3.90mm Width).
In Stock: 47,514
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Open Collector |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Max) | 4.4 mA |
| Current - Output High, Low | 1mA, 8mA |
| Logic Level - Low | 0.8V |
| Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 45ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
