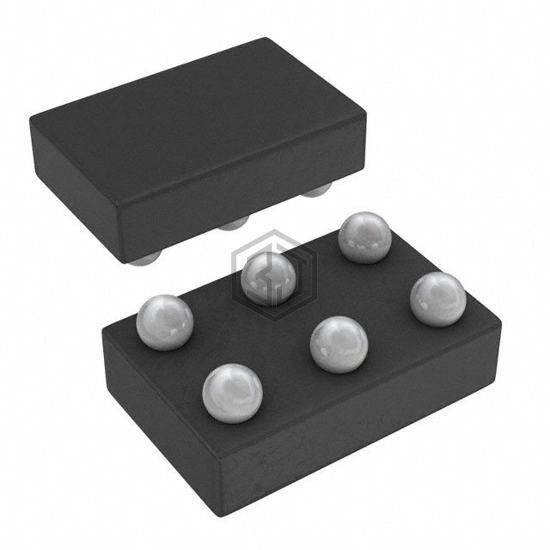

IC INVERT SCHMITT 2CH 2IN 6DSBGA
SN74LVC2G14YEPR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC INVERT SCHMITT 2CH 2IN 6DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 6-XFBGA, DSBGA.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.3V ~ 1.4V |
| Logic Level - High | 1.4V ~ 3.7V |
| Max Propagation Delay @ V, Max CL | 4.3ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-DSBGA |
| Package / Case | 6-XFBGA, DSBGA |
SN74LVC2G14YEPR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVC2G04MDCKREP | Texas Instruments | IC INVERTER 2CH 2-INP SC70-6 | 92% | View |
| 74LVC2GU04GV,125 | Nexperia USA Inc. | IC INVERTER 2CH 2-INP 6TSOP | 86% | View |
| NL27WZ14DTT1G | onsemi | IC INVERT SCHMITT 2CH 2-IN 6TSOP | 85% | View |
| SN74LVC1GU04DCKT | Texas Instruments | IC INVERTER 1CH 1-INP SC70-5 | 85% | View |
| 74LVC3GU04DC,125 | Nexperia USA Inc. | IC INVERTER 3CH 3-INP 8VSSOP | 80% | View |
| 74LVC1G14GV-Q100,1 | Nexperia USA Inc. | IC INVERT SCHMITT 1CH 1-IN SC74A | 79% | View |
Submit your RFQ for SN74LVC2G14YEPR and get a quote within 24 hours.
