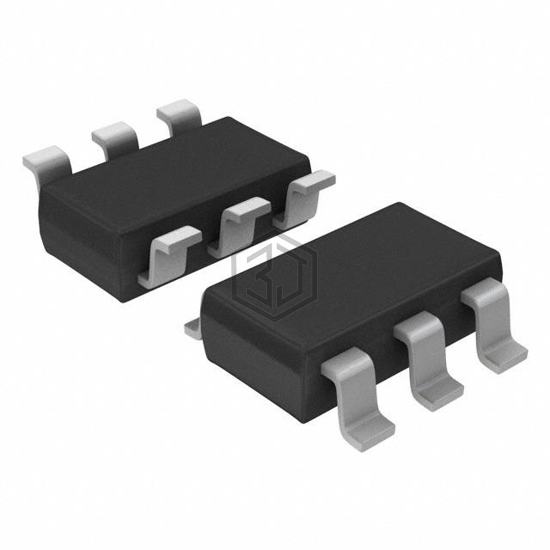

IC INVERT SCHMITT 2CH 2-IN 6TSOP
NL27WZ14DTT1G is a Logic - Gates and Inverters manufactured by onsemi. IC INVERT SCHMITT 2CH 2-IN 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case SOT-23-6 Thin, TSOT-23-6.
In Stock: 270,615
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.4V ~ 1.2V |
| Logic Level - High | 1.8V ~ 3.6V |
| Max Propagation Delay @ V, Max CL | 4.9ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-TSOP |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NL27WZ14DFT2G-Q | onsemi | DUAL INVERTER WITH SCHMITT TRIGG | 100% | View |
| NLX2G04BMX1TCG | onsemi | IC INVERTER 2CH 2-INP 6ULLGA | 94% | View |
| NLV27WZ04DFT1G | onsemi | IC INVERTER 2CH 2-INP SC88 | 94% | View |
| NL17SZU04XV5T2G-L22087 | onsemi | IC INVERTER 1CH 1-INP SOT553 | 89% | View |
| SN74LVC2G04MDCKREP | Texas Instruments | IC INVERTER 2CH 2-INP SC70-6 | 83% | View |
| SN74LVC1G14MDBVREP | Texas Instruments | IC INVERTER 1CH 1-INP SOT23-5 | 78% | View |
Submit your RFQ for NL27WZ14DTT1G and get a quote within 24 hours.
