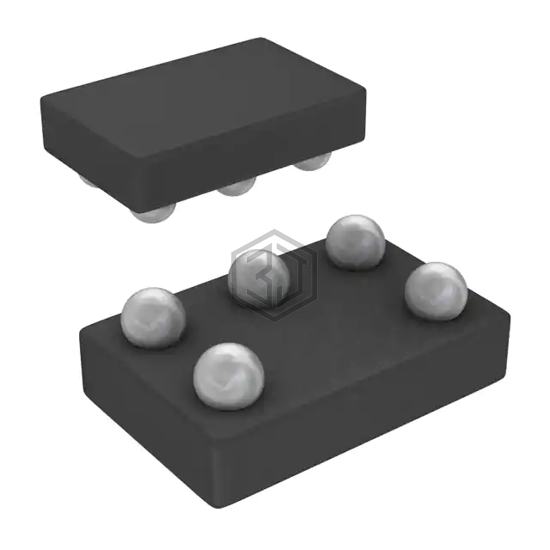

IC GATE NOR 1CH 2-INP 5DSBGA
SN74LVC1G02YZPR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NOR 1CH 2-INP 5DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.65V ~ 5.5V, package / case 5-XFBGA, DSBGA.
In Stock: 3,962
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NOR Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.7V ~ 0.8V |
| Logic Level - High | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 4ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-DSBGA (1.4x0.9) |
| Package / Case | 5-XFBGA, DSBGA |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVC1G02DSFR | Texas Instruments | IC GATE NOR 1CH 2-INP 6SON | 98% | View |
| 74LVC1G02GX,125 | NXP USA Inc. | IC GATE NOR 1CH 2-INP 5X2SON | 94% | View |
| 74LVC1G27GM,132 | Nexperia USA Inc. | IC GATE NOR 1CH 3-INP 6XSON | 90% | View |
| 74LVC1G27GV,125 | Nexperia USA Inc. | IC GATE NOR 1CH 3-INP 6TSOP | 90% | View |
| 74LVC2G02DP-Q100H | Nexperia USA Inc. | IC GATE NOR 2CH 2-INP 8TSSOP | 89% | View |
| NC7SZ02FHX | Fairchild Semiconductor | NOR GATE, LVC/LCX/Z SERIES, 1-FU | 86% | View |
Submit your RFQ for SN74LVC1G02YZPR and get a quote within 24 hours.
