NOR GATE, LVC/LCX/Z SERIES, 1-FU

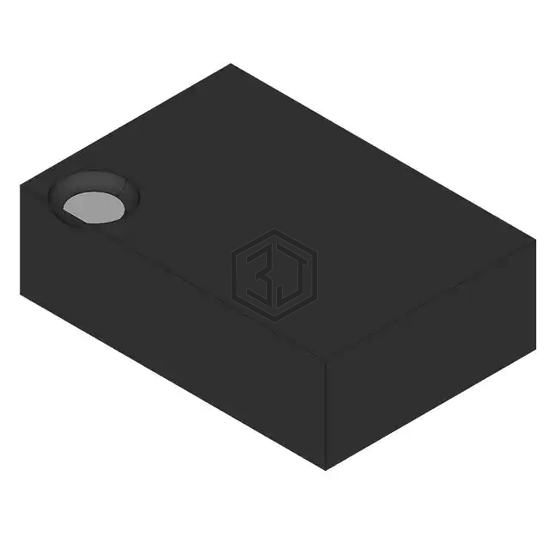

NC7SZ02FHX is a Logic - Gates and Inverters manufactured by Fairchild Semiconductor. NOR GATE, LVC/LCX/Z SERIES, 1-FU. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.65V ~ 5.5V, package / case 6-UFDFN.
In Stock: 71,563
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NOR Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | - |
| Logic Level - High | - |
| Max Propagation Delay @ V, Max CL | 4.3ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-MicroPak2™ |
| Package / Case | 6-UFDFN |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LVC1G02GX,125 | NXP USA Inc. | IC GATE NOR 1CH 2-INP 5X2SON | 93% | View |
| 74LVC1G27GM,132 | Nexperia USA Inc. | IC GATE NOR 1CH 3-INP 6XSON | 88% | View |
| 74LVC1G27GV,125 | Nexperia USA Inc. | IC GATE NOR 1CH 3-INP 6TSOP | 88% | View |
| SN74LVC1G02DCKT | Texas Instruments | IC GATE NOR 1CH 2-INP SC70-5 | 87% | View |
| SN74LVC1G02DSFR | Texas Instruments | IC GATE NOR 1CH 2-INP 6SON | 87% | View |
| SN74LVC1G02YZPR | Texas Instruments | IC GATE NOR 1CH 2-INP 5DSBGA | 86% | View |
Submit your RFQ for NC7SZ02FHX and get a quote within 24 hours.
