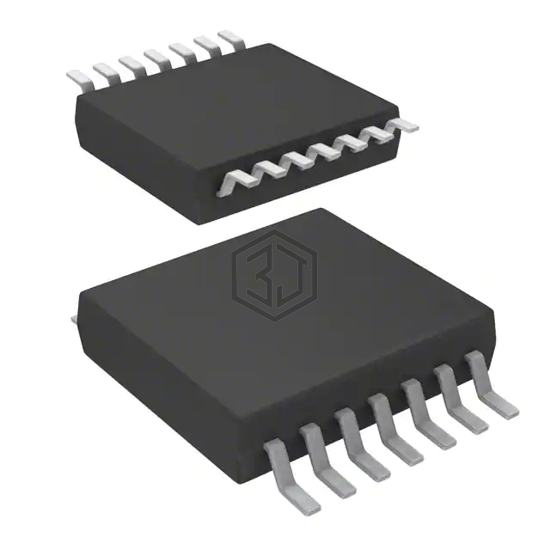

IC GATE NAND 4CH 2-INP 14TVSOP
SN74LV00ADGVR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND 4CH 2-INP 14TVSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 5.5V, package / case 14-TFSOP (0.173", 4.40mm Width).
In Stock: 17,459
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 20 µA |
| Current - Output High, Low | 12mA, 12mA |
| Logic Level - Low | 0.5V |
| Logic Level - High | 1.5V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TVSOP |
| Package / Case | 14-TFSOP (0.173", 4.40mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LV00ARGYR | Texas Instruments | IC GATE NAND 4CH 2-INP 14VQFN | 100% | View |
| SN74LV10AD | Texas Instruments | IC GATE NAND 3CH 3-INP 14SOIC | 95% | View |
| SN74LV20AD | Texas Instruments | IC GATE NAND 2CH 4-INP 14SOIC | 90% | View |
| SN74LV20ADBR | Texas Instruments | IC GATE NAND 2CH 4-INP 14SSOP | 90% | View |
| 74LV132D-Q100J | Nexperia USA Inc. | IC GATE NAND SCHMIT 4CH 2IN 14SO | 89% | View |
| 74LV132DB,112 | NXP USA Inc. | NAND GATE, LV/LV-A/LVX/H SERIES, | 85% | View |
Submit your RFQ for SN74LV00ADGVR and get a quote within 24 hours.
