NAND GATE, LV/LV-A/LVX/H SERIES,

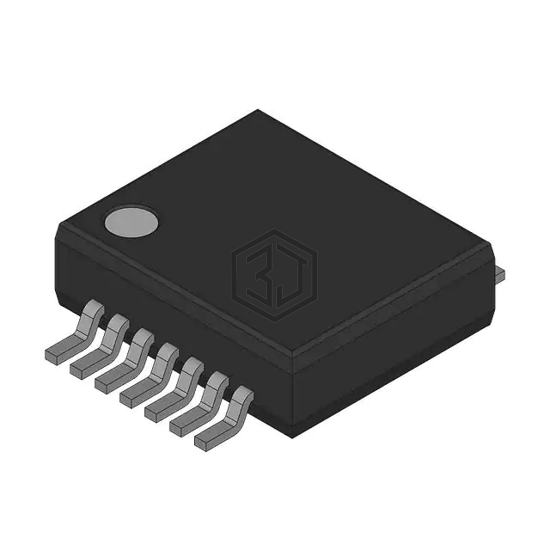

74LV132DB,112 is a Logic - Gates and Inverters manufactured by NXP USA Inc.. NAND GATE, LV/LV-A/LVX/H SERIES,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1V ~ 5.5V, package / case 14-SSOP (0.209", 5.30mm Width).
In Stock: 2,492
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1V ~ 5.5V |
| Current - Quiescent (Max) | 40 µA |
| Current - Output High, Low | 12mA, 12mA |
| Logic Level - Low | 0.3V ~ 1.2V |
| Logic Level - High | 1.4V ~ 3.9V |
| Max Propagation Delay @ V, Max CL | 9ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SSOP |
| Package / Case | 14-SSOP (0.209", 5.30mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LV132BQ,115 | Nexperia USA Inc. | IC GATE NAND 4CH 2-INP 14DHVQFN | 100% | View |
| 74LV132D-Q100J | Nexperia USA Inc. | IC GATE NAND SCHMIT 4CH 2IN 14SO | 96% | View |
| 74LV00D,118 | Nexperia USA Inc. | IC GATE NAND 4CH 2-INP 14SO | 92% | View |
| 74LV00D,112 | NXP Semiconductors | NOW NEXPERIA 74LV00D - NAND GATE | 92% | View |
| 74LV00DB,118-NEX | Nexperia USA Inc. | IC GATE NAND 4CH 2-INP 14SSOP | 90% | View |
| 74LV03D,112 | NXP USA Inc. | IC GATE NAND 4CH 2-INP 14SO | 88% | View |
Submit your RFQ for 74LV132DB,112 and get a quote within 24 hours.
