IC GATE NAND 2CH 4-INP 14DIP

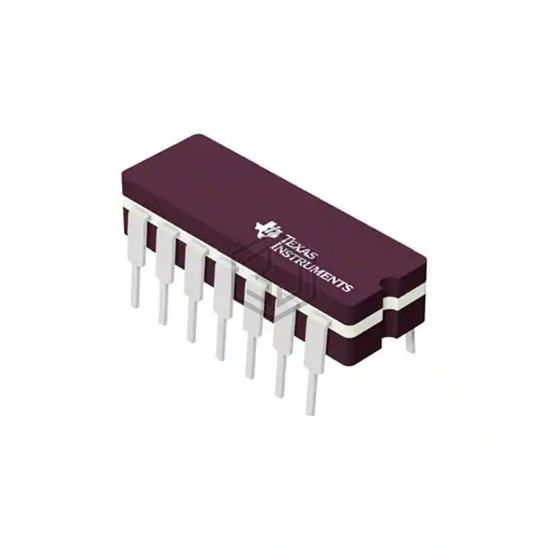

SN74LS20NG4 is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND 2CH 4-INP 14DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-DIP (0.300", 7.62mm).
In Stock: 3,732
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Logic Type | NAND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 4 |
| Features | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Max) | - |
| Current - Output High, Low | 400µA, 8mA |
| Logic Level - Low | 0.8V |
| Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 15ns @ 5V, 15pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
SN74LS20NG4 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NTE74LS00 | NTE Electronics, Inc | IC GATE NAND 4CH 2-INP 14DIP | 90% | View |
| SN74ALS30AN | Texas Instruments | IC GATE NAND 1CH 8-INP 14DIP | 86% | View |
| SN74LS30N | Texas Instruments | IC GATE NAND 1CH 8-INP 14DIP | 85% | View |
| SN7400N | Texas Instruments | IC GATE NAND 4CH 2-INP 14DIP | 84% | View |
| SN74LS132N | Texas Instruments | IC GATE NAND 4CH 2IN 14DIP | 80% | View |
| SN74LS03N | Texas Instruments | IC GATE NAND OPEN 4CH 2-IN 14DIP | 70% | View |
