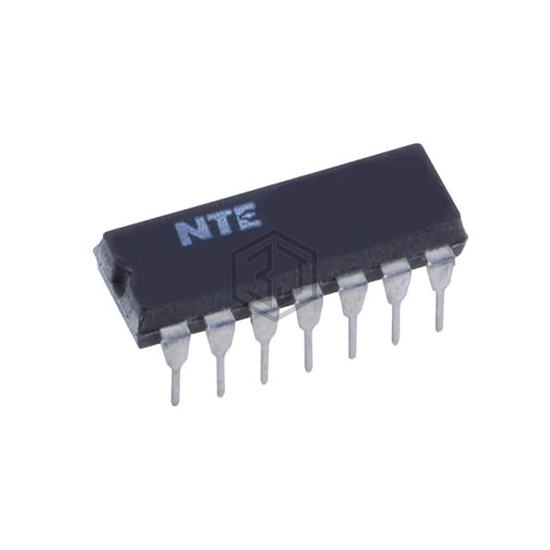

IC GATE NAND 4CH 2-INP 14DIP
NTE74LS00 is a Logic - Gates and Inverters manufactured by NTE Electronics, Inc. IC GATE NAND 4CH 2-INP 14DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), voltage - supply 4.75V ~ 5.25V, package / case 14-DIP (0.300", 7.62mm).
In Stock: 21
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Max) | - |
| Current - Output High, Low | 400µA, 8mA |
| Logic Level - Low | 0.8V |
| Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 15ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-DIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DM74LS00N | onsemi | IC GATE NAND 4CH 2-INP 14DIP | 100% | View |
| DM74LS10N | onsemi | IC GATE NAND 3CH 3-INP 14DIP | 95% | View |
| SN7400N | Texas Instruments | IC GATE NAND 4CH 2-INP 14DIP | 93% | View |
| SN74ALS30AN | Texas Instruments | IC GATE NAND 1CH 8-INP 14DIP | 77% | View |
| SN74LS30N | Texas Instruments | IC GATE NAND 1CH 8-INP 14DIP | 76% | View |
| SN74ALS133N | Texas Instruments | IC GATE NAND 1CH 13-INP 16DIP | 70% | View |
Submit your RFQ for NTE74LS00 and get a quote within 24 hours.
