HEX INVERTER WITH SCHMITT-TRIGGE

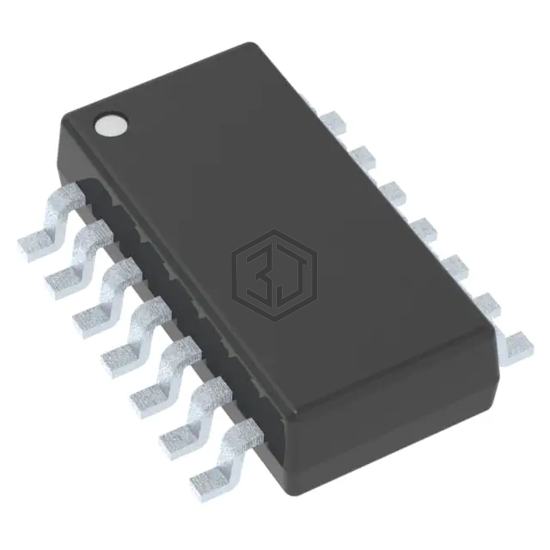

SN74HCS14DYYR is a Logic - Gates and Inverters manufactured by Texas Instruments. HEX INVERTER WITH SCHMITT-TRIGGE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 6V, package / case SOT-23-14 Thin, SOT-23 Variant.
In Stock: 6,582
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger Input |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 7.8mA |
| Logic Level - Low | 1V ~ 3V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 16ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOT-23-THIN |
| Package / Case | SOT-23-14 Thin, SOT-23 Variant |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74HCS14BQAR | Texas Instruments | HEX INVERTER WITH SCHMITT-TRIGGE | 100% | View |
| SN74HCS14QDYYRQ1 | Texas Instruments | AUTOMOTIVE 6-CH, 2-V TO 6-V LOW | 100% | View |
| SN74HCS04BQAR | Texas Instruments | HEX INVERTER WITH SCHMITT-TRIGGE | 100% | View |
| SN74HCS04PWR | Texas Instruments | IC INVERTER 6CH 1-INP 14TSSOP | 100% | View |
| SN74HCS14QPWRQ1 | Texas Instruments | IC INVERTER 6CH 1-INP 14TSSOP | 100% | View |
| 74HCS14PWJ | Nexperia USA Inc. | 74HCS14PW/SOT402/TSSOP14 | 88% | View |
Submit your RFQ for SN74HCS14DYYR and get a quote within 24 hours.
