HEX INVERTER WITH SCHMITT-TRIGGE

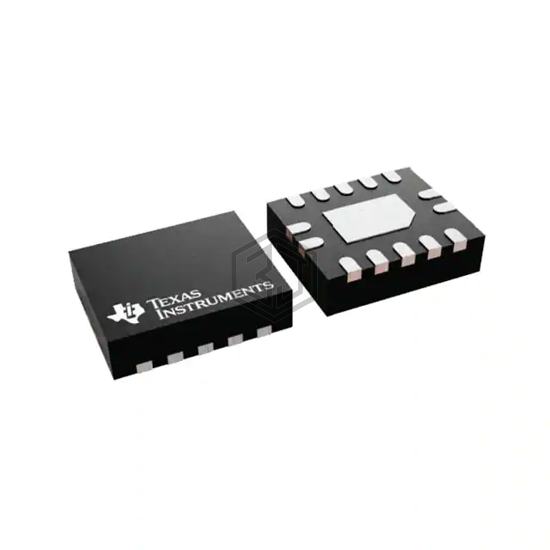

SN74HCS04BQAR is a Logic - Gates and Inverters manufactured by Texas Instruments. HEX INVERTER WITH SCHMITT-TRIGGE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 2V ~ 6V, package / case 14-QFN Exposed Pad.
In Stock: 9,917
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger Input |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Logic Level - Low | 1V ~ 3V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 16ns @ 6V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-WQFN (3x2.5) |
| Package / Case | 14-QFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74HCS14BQAR | Texas Instruments | HEX INVERTER WITH SCHMITT-TRIGGE | 100% | View |
| 74VHCT04AMTR | STMicroelectronics | IC INVERTER 6CH 1-INP 14SO | 80% | View |
| CD4049UBCSJ | Fairchild Semiconductor | IC INVERTER 6CH 1-INP 16SOP | 74% | View |
| CD4069UBK | Harris Corporation | IC INVERT HEX 6CH 1-INP 14CFP | 66% | View |
| CD40106BK3 | Harris Corporation | IC INVERTER 6CH 1-INP 14CFP | 55% | View |
| HCF40106YM013TR | STMicroelectronics | IC INVERT SCHMITT 6CH 1-INP 14SO | 55% | View |
Submit your RFQ for SN74HCS04BQAR and get a quote within 24 hours.
