2:1 (SPDT), 4-CHANNEL SWITCH WIT

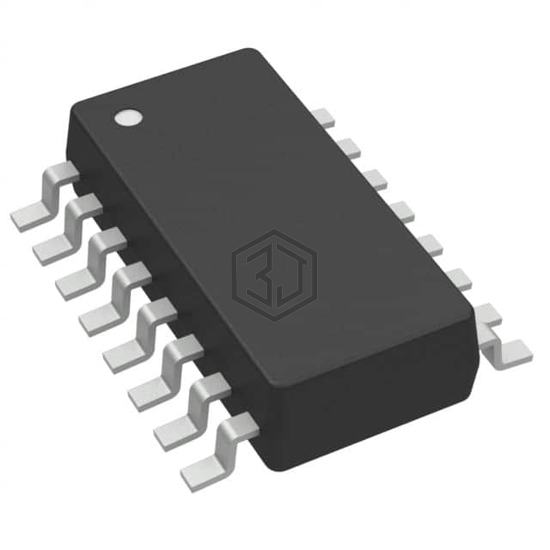

SN3257QDYYRQ1 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. 2:1 (SPDT), 4-CHANNEL SWITCH WIT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case SOT-23-16 Thin, SOT-23 Variant, number of circuits 1.
In Stock: 3,740
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 5Ohm |
| Channel-to-Channel Matching (ΔRon) | 70mOhm |
| Voltage - Supply, Single (V+) | 1.5V ~ 5.5V |
| Voltage - Supply, Dual (V±) | 1.5V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 35µs, 95ns |
| -3db Bandwidth | 1.2GHz |
| Charge Injection | 3.5pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 4pF |
| Current - Leakage (IS(off)) (Max) | 900nA (Typ) |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-16 Thin, SOT-23 Variant |
| Supplier Device Package | 16-SOT-23-THIN |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN3257QPWRQ1 | Texas Instruments | PRECISION ANALOG MULTIPLEXER | 100% | View |
| PI3USB4000DQ1ZUAEX | Diodes Incorporated | USB2 SWITCH U-QFN1520-10 T&R 3K | 78% | View |
| TMUX1574DYYR | Texas Instruments | IC SWITCH QUAD SPDT 16SOT-23 | 59% | View |
| TMUX1574RSVR | Texas Instruments | IC SWITCH SPDT QUAD 16UQFN | 52% | View |
| TMUX1574PWR | Texas Instruments | IC SWITCH SPDT QUAD 16TSSOP | 52% | View |
Submit your RFQ for SN3257QDYYRQ1 and get a quote within 24 hours.
