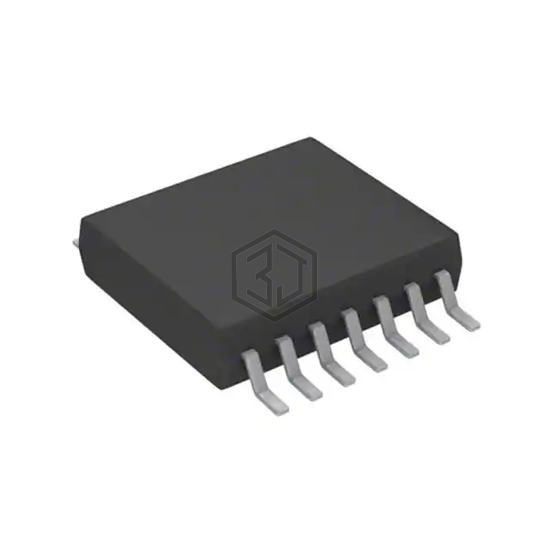

2.2MHZ WIDE VIN AUTOMOTIVE NON-S
LM5156HQPWPRQ1 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. 2.2MHZ WIDE VIN AUTOMOTIVE NON-S. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply (vcc/vdd) 2.97V ~ 60V, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 3,110
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.97V ~ 60V |
| Frequency - Switching | 100kHz ~ 2.2MHz |
| Duty Cycle (Max) | 93% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 14-HTSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5155DSST | Texas Instruments | PWR MGMT SWITCHING REGULATOR | 100% | View |
| LM3488MM | Texas Instruments | IC REG CTRLR MULT TOP 8VSSOP | 100% | View |
| LM51561HPWPR | Texas Instruments | 2.2 MHZ WIDE INPUT NONSYNCHRONOU | 100% | View |
| LM3481MM/NOPB | Texas Instruments | IC REG CTRLR MULT TOP 10MSOP | 100% | View |
| LM3481QMM/NOPB | Texas Instruments | IC REG CTRLR MULT TOP 10MSOP | 100% | View |
| LM3488MMX/NOPB | Texas Instruments | IC REG CTRLR MULT TOP 8VSSOP | 100% | View |
Submit your RFQ for LM5156HQPWPRQ1 and get a quote within 24 hours.
