PWR MGMT SWITCHING REGULATOR

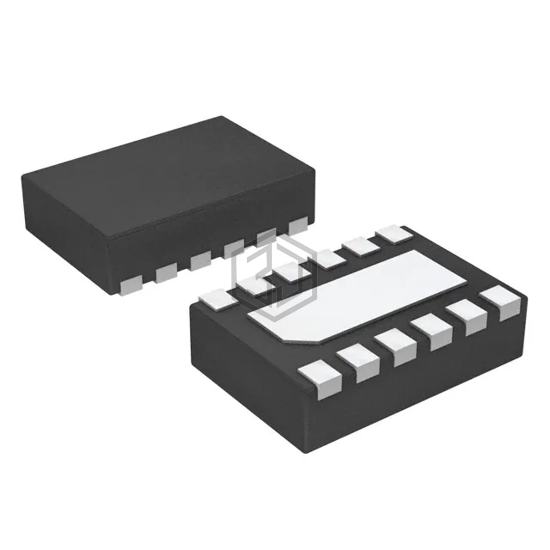

LM5155DSST is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. PWR MGMT SWITCHING REGULATOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 2.97V ~ 45V, package / case 12-WFDFN Exposed Pad.
In Stock: 1,084
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.97V ~ 45V |
| Frequency - Switching | 100kHz ~ 2.2MHz |
| Duty Cycle (Max) | 96% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-WSON (3x2) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM3488MM | Texas Instruments | IC REG CTRLR MULT TOP 8VSSOP | 100% | View |
| LM5156HQPWPRQ1 | Texas Instruments | 2.2MHZ WIDE VIN AUTOMOTIVE NON-S | 100% | View |
| LM51561HPWPR | Texas Instruments | 2.2 MHZ WIDE INPUT NONSYNCHRONOU | 100% | View |
| LM3481MM/NOPB | Texas Instruments | IC REG CTRLR MULT TOP 10MSOP | 100% | View |
| LM3481QMM/NOPB | Texas Instruments | IC REG CTRLR MULT TOP 10MSOP | 100% | View |
| LM3488MMX/NOPB | Texas Instruments | IC REG CTRLR MULT TOP 8VSSOP | 100% | View |
Submit your RFQ for LM5155DSST and get a quote within 24 hours.
