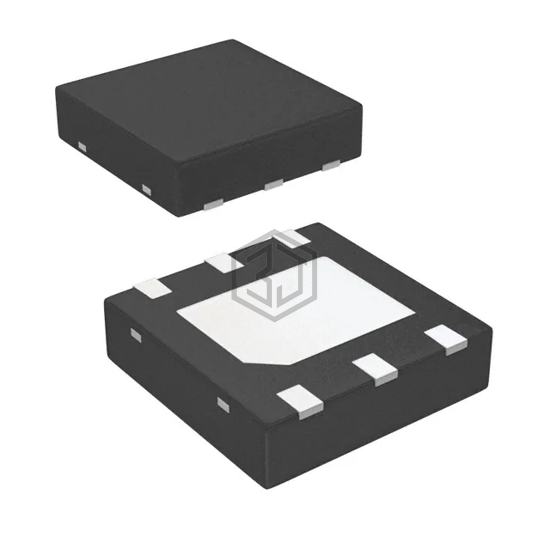

IC GATE DRVR LOW-SIDE 6WSON
LM5134ASD/NOPB is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR LOW-SIDE 6WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4V ~ 12.6V, package / case 6-WDFN Exposed Pad.
In Stock: 7,257
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4V ~ 12.6V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 4.5A, 7.6A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 3ns, 2ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5134BSDX/NOPB | Texas Instruments | IC GATE DRVR LOW-SIDE 6WSON | 100% | View |
| LM5134BMFX/NOPB | Texas Instruments | IC GATE DRVR LOW-SIDE SOT23-6 | 100% | View |
| LM5134BSD/NOPB | Texas Instruments | IC GATE DRVR LOW-SIDE 6WSON | 100% | View |
| UCC27517ADBVR | Texas Instruments | IC GATE DRVR LOW-SIDE SOT23-5 | 81% | View |
| UCC27517AQDBVRQ1 | Texas Instruments | IC GATE DRVR LOW-SIDE SOT23-5 | 81% | View |
| UCC27512DRSR | Texas Instruments | IC GATE DRVR LOW-SIDE 6SON | 81% | View |
Submit your RFQ for LM5134ASD/NOPB and get a quote within 24 hours.
