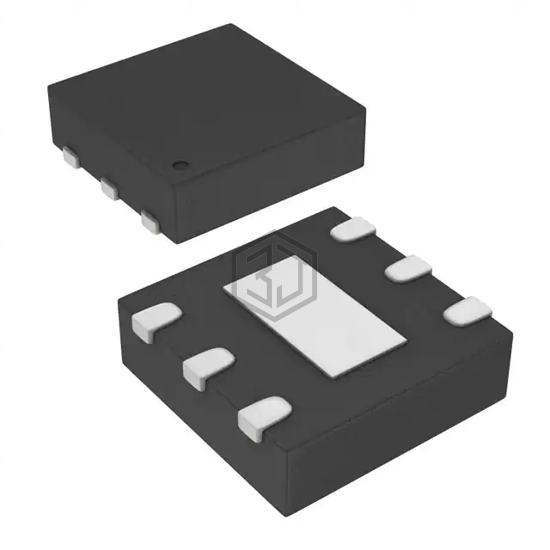

IC GATE DRVR LOW-SIDE 6SON
UCC27512DRSR is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR LOW-SIDE 6SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 140°C (TJ), voltage - supply 4.5V ~ 18V, package / case 6-WDFN Exposed Pad.
In Stock: 2,239
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 1V, 2.4V |
| Current - Peak Output (Source, Sink) | 4A, 8A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 8ns, 7ns |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-SON (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCC27517ADBVR | Texas Instruments | IC GATE DRVR LOW-SIDE SOT23-5 | 100% | View |
| UCC27517AQDBVRQ1 | Texas Instruments | IC GATE DRVR LOW-SIDE SOT23-5 | 100% | View |
| MCP14A0451T-E/SN | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 94% | View |
| MCP14A0451T-E/MS | Microchip Technology | IC GATE DRVR LOW-SIDE 8MSOP | 94% | View |
| MCP14A0451-E/SN | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 94% | View |
| MCP14A0452-E/SN | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 94% | View |
Submit your RFQ for UCC27512DRSR and get a quote within 24 hours.
