IC GATE DRVR HALF-BRIDGE 12USMD

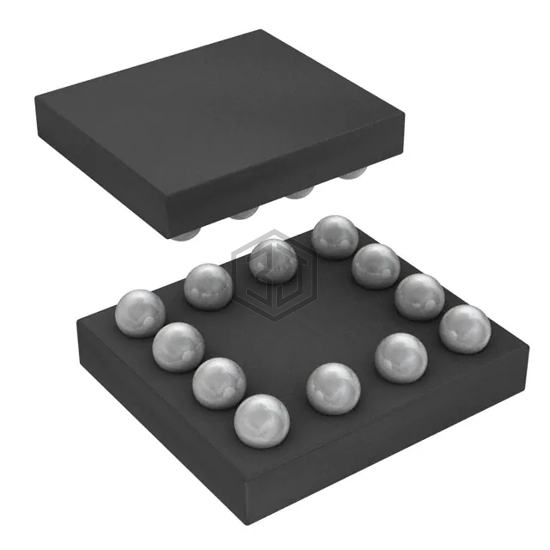

LM5113TMX/NOPB is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 12USMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 12-WFBGA.
In Stock: 1,961
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 5.5V |
| Logic Voltage - VIL, VIH | 1.76V, 1.89V |
| Current - Peak Output (Source, Sink) | 1.2A, 5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 107 V |
| Rise / Fall Time (Typ) | 7ns, 1.5ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFBGA |
| Supplier Device Package | 12-DSBGA |
LM5113TMX/NOPB is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LMG1205YFXT | Texas Instruments | IC GATE DRVR HALF-BRIDGE 12DSBGA | 99% | View |
| LM5113QDPRRQ1 | Texas Instruments | IC GATE DRVR HALF-BRIDGE 10WSON | 99% | View |
| LMG1205YFXR | Texas Instruments | IC GATE DRVR HALF-BRIDGE 12DSBGA | 99% | View |
| TC4467EOE | Microchip Technology | IC GATE DRVR LOW-SIDE 16SOIC | 72% | View |
| TC4468EOE | Microchip Technology | IC GATE DRVR LOW-SIDE 16SOIC | 72% | View |
| TC4469EOE | Microchip Technology | IC GATE DRVR LOW-SIDE 16SOIC | 72% | View |
Submit your RFQ for LM5113TMX/NOPB and get a quote within 24 hours.
