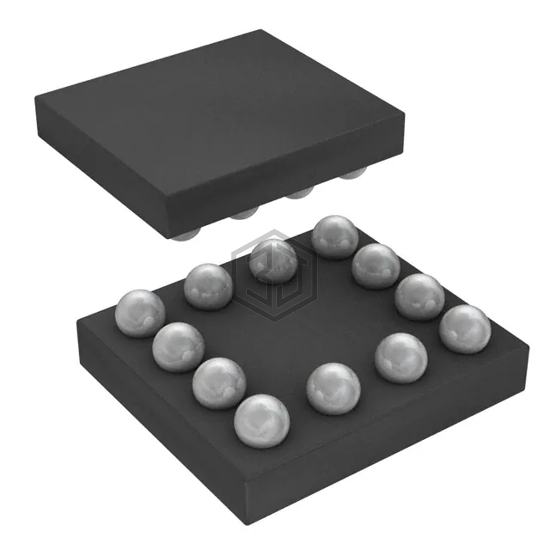

IC GATE DRVR HALF-BRIDGE 12DSBGA
LMG1205YFXT is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 12DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 12-WFBGA, DSBGA.
In Stock: 9,341
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 5.5V |
| Logic Voltage - VIL, VIH | 1.76V, 1.89V |
| Current - Peak Output (Source, Sink) | 1.2A, 5A |
| Input Type | TTL |
| High Side Voltage - Max (Bootstrap) | 100 V |
| Rise / Fall Time (Typ) | 7ns, 3.5ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFBGA, DSBGA |
| Supplier Device Package | 12-DSBGA |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5113QDPRRQ1 | Texas Instruments | IC GATE DRVR HALF-BRIDGE 10WSON | 100% | View |
| LMG1205YFXR | Texas Instruments | IC GATE DRVR HALF-BRIDGE 12DSBGA | 100% | View |
| MIC4605-2YM-TRVAO | Microchip Technology | IC GATE DRVR HALF-BRIDGE 85V | 76% | View |
| TC4467EOE | Microchip Technology | IC GATE DRVR LOW-SIDE 16SOIC | 72% | View |
| TC4469EOE713 | Microchip Technology | IC GATE DRVR LOW-SIDE 16SOIC | 72% | View |
| TC4469EOE | Microchip Technology | IC GATE DRVR LOW-SIDE 16SOIC | 72% | View |
Submit your RFQ for LMG1205YFXT and get a quote within 24 hours.
