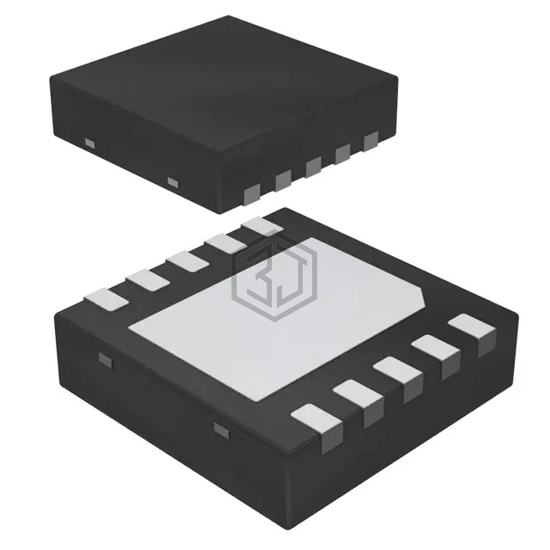

IC GATE DRVR HALF-BRIDGE 10WSON
LM5101CSD is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 10WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9V ~ 14V, package / case 10-WDFN Exposed Pad.
In Stock: 2,072
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 9V ~ 14V |
| Logic Voltage - VIL, VIH | 2.3V, - |
| Current - Peak Output (Source, Sink) | 1A, 1A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 118 V |
| Rise / Fall Time (Typ) | 990ns, 715ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-WDFN Exposed Pad |
| Supplier Device Package | 10-WSON (4x4) |
LM5101CSD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5100CSD/NOPB | Texas Instruments | HALF BRIDGE BASED MOSFET DRIVER, | 100% | View |
| LM5100CMY/NOPB-NS | National Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 100% | View |
| LM25101CSD/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 10WSON | 98% | View |
| LM5109AMA/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8SOIC | 70% | View |
| LM5109ASDX/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8WSON | 70% | View |
| MIC4605-1YM-TR | Microchip Technology | IC GATE DRVR HALF-BRIDGE 8SOIC | 66% | View |
