IC BRIDGE DRIVER PAR 44HTSSOP

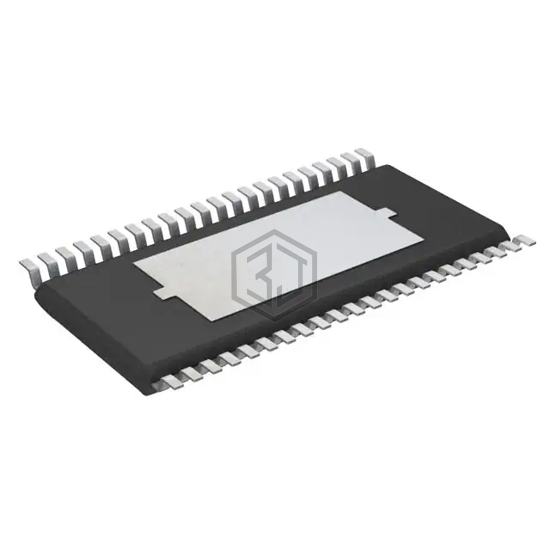

DRV8412DDW is a PMIC - Full, Half-Bridge Drivers manufactured by Texas Instruments. IC BRIDGE DRIVER PAR 44HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10.8V ~ 13.2V, package / case 44-TSSOP (0.244", 6.20mm Width) Exposed Pad.
In Stock: 5,878
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (4) |
| Applications | DC Motors, Stepper Motors |
| Interface | PWM |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 110mOhm LS, 110mOhm HS |
| Current - Output / Channel | 3A |
| Current - Peak Output | 6A |
| Voltage - Supply | 10.8V ~ 13.2V |
| Voltage - Load | 0V ~ 52.5V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Status Flag |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 44-TSSOP (0.244", 6.20mm Width) Exposed Pad |
| Supplier Device Package | 44-HTSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV8412DDWR | Texas Instruments | IC BRIDGE DRIVER PAR 44HTSSOP | 100% | View |
| DRV8935PPWPR | Texas Instruments | 33V, 2.5A QUAD INDEPENDENT HALF | 62% | View |
| DRV8935PRGER | Texas Instruments | 33V, 2.5A QUAD INDEPENDENT HALF | 62% | View |
| DRV8432DKD | Texas Instruments | IC BRIDGE DRIVER PAR 36HSSOP | 55% | View |
| DRV8432DKDR | Texas Instruments | IC BRIDGE DRIVER PAR 36HSSOP | 55% | View |
Submit your RFQ for DRV8412DDW and get a quote within 24 hours.
