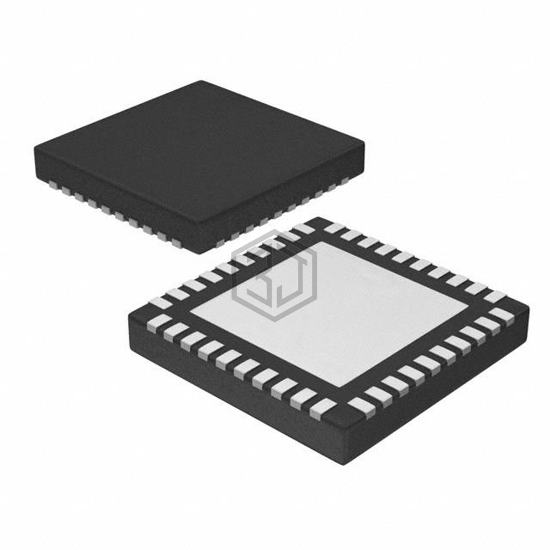

IC GATE DRVR HI/LOW SIDE 40VQFN
DRV8304HRHAT is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HI/LOW SIDE 40VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 6V ~ 38V, package / case 40-VFQFN Exposed Pad.
In Stock: 3,750
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | 3-Phase |
| Number of Drivers | 3 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 6V ~ 38V |
| Logic Voltage - VIL, VIH | 0.8V, 1.5V |
| Current - Peak Output (Source, Sink) | 150mA, 300mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 300ns, 150ns |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-VQFN (6x6) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV8304HRHAR | Texas Instruments | IC GATE DRVR HI/LOW SIDE 40VQFN | 100% | View |
| DRV8304SRHAR | Texas Instruments | IC SENSOR HALL EFFECT | 100% | View |
| IRS23365DMTRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 48MLPQ | 72% | View |
| IR2136JPBF-INF | Infineon Technologies | 3-PHASE BRIDGE DRIVER | 71% | View |
| IR2136JTR | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 44PLCC | 71% | View |
| IR21364STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28SOIC | 69% | View |
Submit your RFQ for DRV8304HRHAT and get a quote within 24 hours.
