3-PHASE BRIDGE DRIVER

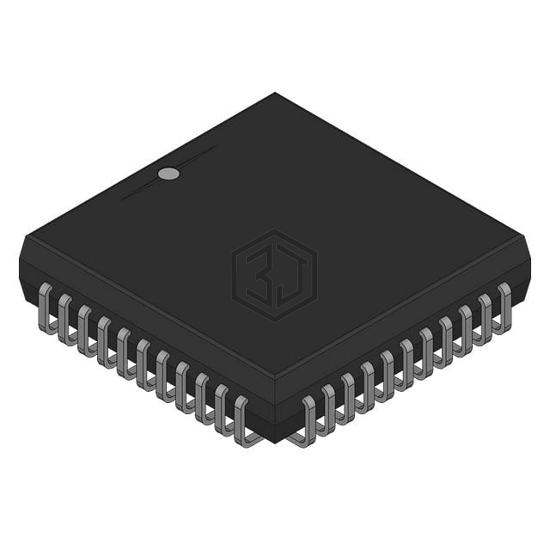

IR2136JPBF-INF is a PMIC - Gate Drivers manufactured by Infineon Technologies. 3-PHASE BRIDGE DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 10V ~ 20V, package / case 44-LCC (J-Lead).
In Stock: 1,161
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | 3-Phase |
| Number of Drivers | 6 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 200mA, 350mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 125ns, 50ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 44-LCC (J-Lead) |
| Supplier Device Package | 44-PLCC (16.59x16.59) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IRS2336SPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28SOIC | 100% | View |
| IRS2336JTRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 44PLCC | 100% | View |
| IR21368SPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28SOIC | 100% | View |
| IRS2334MPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28MLPQ | 100% | View |
| IR21364STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28SOIC | 99% | View |
| IR21363JTRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 44PLCC | 98% | View |
