BRIDGE DRIVER

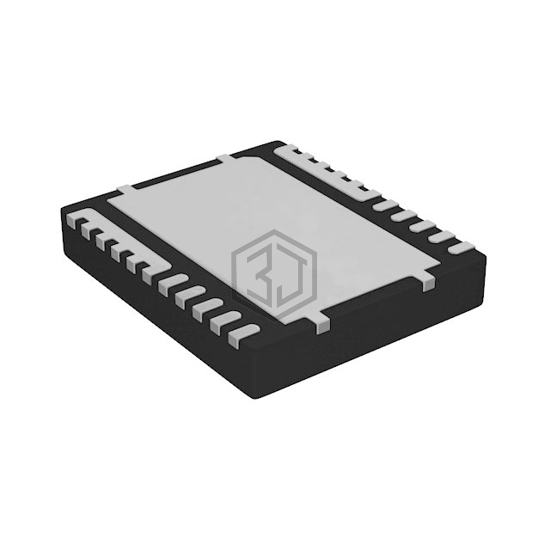

CSD96497Q5MCT is a PMIC - Full, Half-Bridge Drivers manufactured by Texas Instruments. BRIDGE DRIVER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, voltage - supply 3.3V ~ 5V, package / case 12-PowerTFDFN.
In Stock: 1,816
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | - |
| Applications | DC-DC Converters, Synchronous Buck Converter |
| Interface | PWM |
| Load Type | Inductive, Capacitive, Resistive |
| Technology | Power MOSFET |
| Rds On (Typ) | - |
| Current - Output / Channel | 30A |
| Current - Peak Output | 65A |
| Voltage - Supply | 3.3V ~ 5V |
| Voltage - Load | 3.3V ~ 5V |
| Operating Temperature | -55°C ~ 150°C |
| Features | Bootstrap Circuit, Diode Emulation |
| Fault Protection | Over Current, Over Temperature, Shoot-Through, Short Circuit |
| Mounting Type | Surface Mount |
| Package / Case | 12-PowerTFDFN |
| Supplier Device Package | 12-VSON-CLIP (5x6) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CSD96497Q5MC | Texas Instruments | BRIDGE DRIVER | 100% | View |
| CSD95430RRBT | Texas Instruments | PROTOTYPE | 92% | View |
| CSD95430RRB | Texas Instruments | PROTOTYPE | 92% | View |
| CSD95472Q5MC | Texas Instruments | IC POWERSTAGE SYNC BUCK 12VSON | 66% | View |
| CSD95472Q5MCT | Texas Instruments | IC POWERSTAGE SYNC BUCK 12VSON | 66% | View |
| CSD96416RWJT | Texas Instruments | PROTOTYPE | 52% | View |
Submit your RFQ for CSD96497Q5MCT and get a quote within 24 hours.
