POWERSTAGE

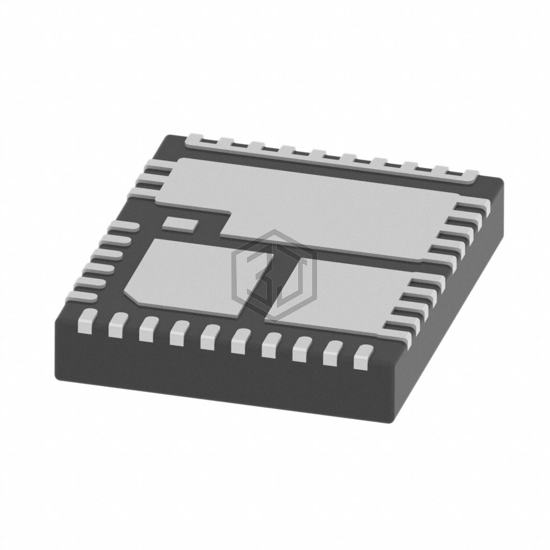

CSD95481RWJ is a PMIC - Full, Half-Bridge Drivers manufactured by Texas Instruments. POWERSTAGE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 41-PowerTFQFN.
In Stock: 3,765
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (3) |
| Applications | Synchronous Buck Converters |
| Interface | PWM |
| Load Type | Inductive, Capacitive |
| Technology | Power MOSFET |
| Rds On (Typ) | - |
| Current - Output / Channel | 60A |
| Current - Peak Output | 90A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 4.5V ~ 16V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | Shoot-Through |
| Mounting Type | Surface Mount |
| Package / Case | 41-PowerTFQFN |
| Supplier Device Package | 41-VQFN-CLIP (5x6) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CSD95481RWJT | Texas Instruments | CSD95481RWJT | 100% | View |
| CSD95491Q5MCT | Texas Instruments | CSD95491Q5MCT | 100% | View |
| CSD95491Q5MC | Texas Instruments | 20V N CH MOSFET | 100% | View |
| CSD95495QVMT | Texas Instruments | CSD95495QVMT | 92% | View |
| CSD95495QVM | Texas Instruments | POWERSTAGE | 92% | View |
| CSD95490Q5MCT | Texas Instruments | CSD95490Q5MCT | 91% | View |
Submit your RFQ for CSD95481RWJ and get a quote within 24 hours.
