SYNCHRONOUS BUCK NEXFET POWER BL

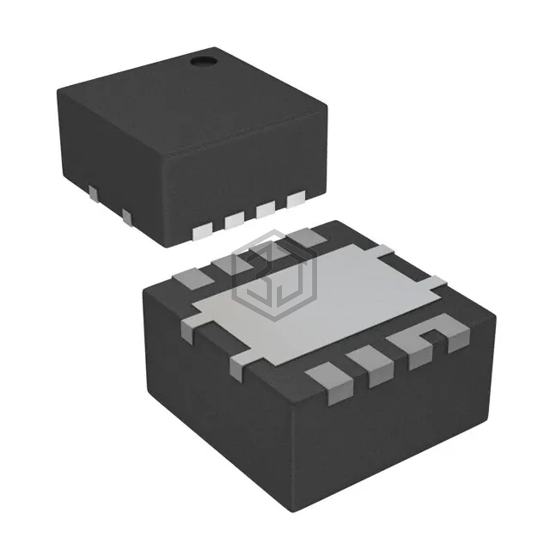

CSD86336Q3DT is a Transistors - FETs, MOSFETs - Arrays manufactured by Texas Instruments. SYNCHRONOUS BUCK NEXFET POWER BL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 8-PowerTDFN, power - max 6W.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Half Bridge) |
| FET Feature | Logic Level Gate, 5V Drive |
| Drain to Source Voltage (Vdss) | 25V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta) |
| Rds On (Max) @ Id, Vgs | 9.1mOhm @ 20A, 5V, 3.4mOhm @ 20A, 5V |
| Vgs(th) (Max) @ Id | 1.9V @ 250µA, 1.6V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3.8nC @ 45V, 7.4nC @ 45V |
| Input Capacitance (Ciss) (Max) @ Vds | 494pF @ 12.5V, 970pF @ 12.5V |
| Power - Max | 6W |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Supplier Device Package | 8-VSON (3.3x3.3) |
Submit your RFQ for CSD86336Q3DT and get a quote within 24 hours.
