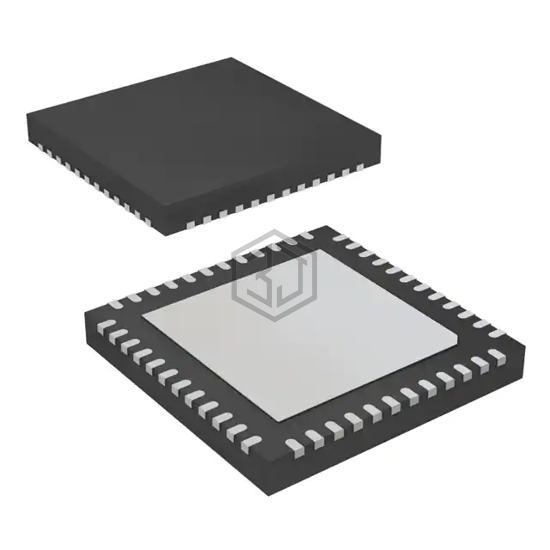

IC ADC 14BIT PIPELINED 48VQFN
ADS5545IRGZRG4 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 14BIT PIPELINED 48VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 3V ~ 3.6V, package / case 48-VFQFN Exposed Pad.
In Stock: 6,286
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 170M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel, Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (7x7) |
| Mounting Type | Surface Mount |
ADS5545IRGZRG4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADC1415S080HN-C18 | Renesas Electronics America Inc | IC ADC 14BIT PIPELINED 40VFQFPN | 99% | View |
| ADC1210S105HN/C1:5 | NXP USA Inc. | IC ADC 12BIT PIPELINED 40HVQFN | 97% | View |
| CS5507-ASZR | Cirrus Logic Inc. | IC ADC 16BIT SIGMA-DELTA 20SOIC | 97% | View |
| THS1030IDWR | Texas Instruments | IC ADC 10BIT PIPELINED 28SOIC | 96% | View |
| ADC1213S105HN/C1,5 | Renesas Electronics America Inc | IC ADC 12BIT PIPELINED 32HVQFN | 90% | View |
| ADS8513IBDWG4 | Texas Instruments | IC ADC 16-BIT 40KSPS LP 16-SOIC | 86% | View |
Submit your RFQ for ADS5545IRGZRG4 and get a quote within 24 hours.
