Renesas Electronics America Inc

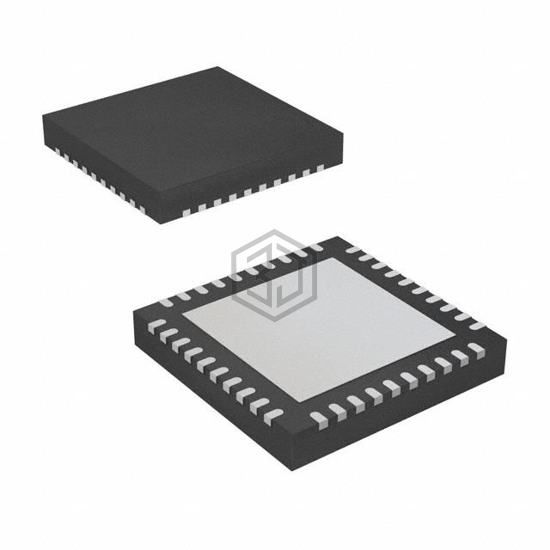

IC ADC 14BIT PIPELINED 40VFQFPN
ADC1415S080HN-C18 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Renesas Electronics America Inc. IC ADC 14BIT PIPELINED 40VFQFPN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.85V ~ 3.4V, 5V, package / case 40-VFQFN Exposed Pad.
In Stock: 6,277
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 80M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | LVDS - Parallel, Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.85V ~ 3.4V, 5V |
| Voltage - Supply, Digital | 2.85V ~ 3.4V, 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-VFQFPN (6x6) |
| Mounting Type | Surface Mount |
ADC1415S080HN-C18 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADS5545IRGZRG4 | Texas Instruments | IC ADC 14BIT PIPELINED 48VQFN | 99% | View |
| ADC1210S105HN/C1:5 | NXP USA Inc. | IC ADC 12BIT PIPELINED 40HVQFN | 98% | View |
| MAX1446GHJ+T | Analog Devices Inc./Maxim Integrated | IC ADC 10BIT PIPELINED 32TQFP | 94% | View |
| ADC1213S105HN/C1,5 | Renesas Electronics America Inc | IC ADC 12BIT PIPELINED 32HVQFN | 91% | View |
| LTC2326HMS-16#PBF | Analog Devices Inc. | IC ADC 16BIT SAR 16MSOP | 84% | View |
| ADS8513IBDWG4 | Texas Instruments | IC ADC 16-BIT 40KSPS LP 16-SOIC | 84% | View |
Submit your RFQ for ADC1415S080HN-C18 and get a quote within 24 hours.
