TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 20A 22V

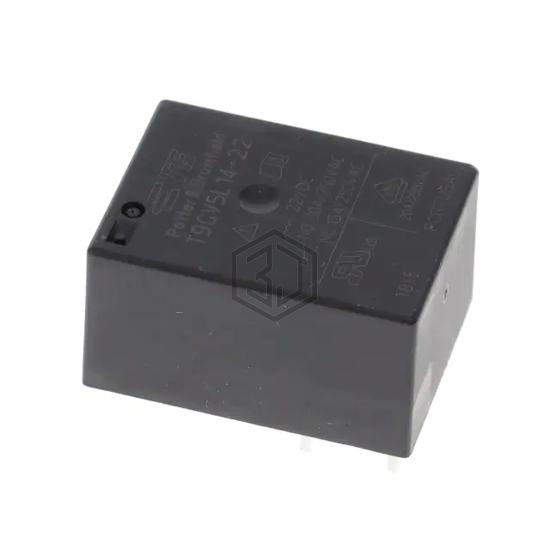

T9GV5L14-22 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPDT 20A 22V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, contact material Silver Tin Oxide (AgSnO), termination style PC Pin.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 22VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 480VAC - Max |
| Coil Current | 41 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class B |
| Must Operate Voltage | 16.5 VDC |
| Must Release Voltage | 2.2 VDC |
| Operate Time | 15 ms |
| Release Time | 22 ms |
| Operating Temperature | -40°C ~ 105°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
Submit your RFQ for T9GV5L14-22 and get a quote within 24 hours.
