TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 10A 120V

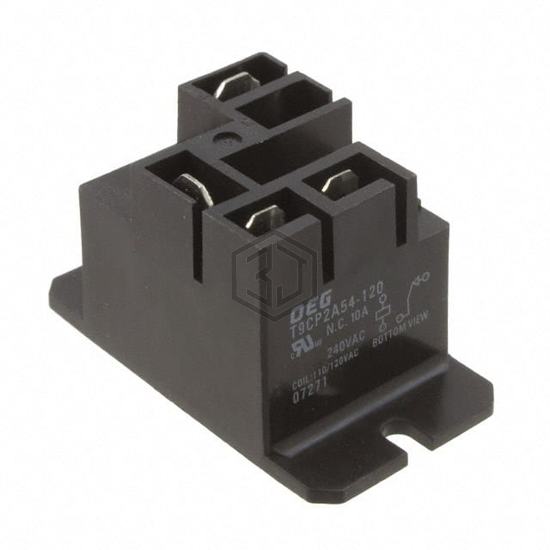

T9CP2A54-120 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPST 10A 120V. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, contact material Silver Tin Oxide Indium Oxide (AgSnOInO), termination style Quick Connect - 0.187"/0.250".
In Stock: 29
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 120VAC |
| Contact Form | SPST-NC (1 Form B) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC - Max |
| Coil Current | 42.9 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.187"/0.250" |
| Seal Rating | - |
| Coil Insulation | Class F |
| Must Operate Voltage | 96 VAC |
| Must Release Voltage | 12 VAC |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Relay Type | General Purpose |
