TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 30A 22V

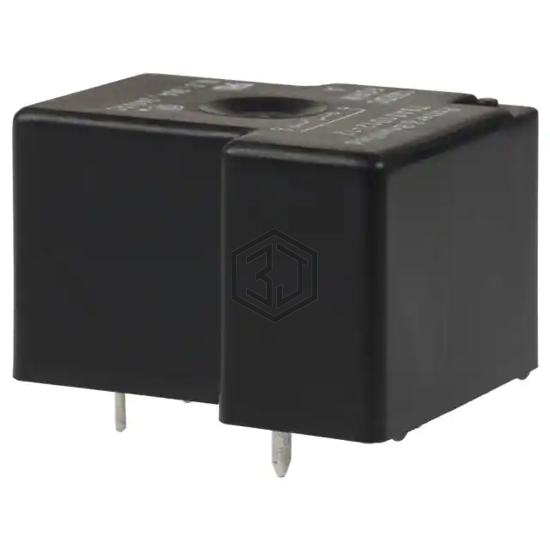

T9AV1D12-22 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPST 30A 22V. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, contact material Silver Cadmium Oxide (AgCdO), termination style PC Pin.
In Stock: 895
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 22VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 277VAC - Max |
| Coil Current | 45.5 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class F |
| Must Operate Voltage | 16.5 VDC |
| Must Release Voltage | 2.2 VDC |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Operating Temperature | -55°C ~ 85°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
