TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 30A 24V

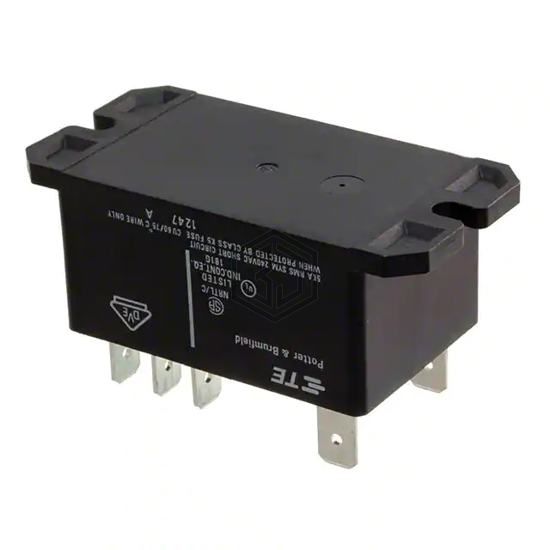

T92P11D22-24 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE DPDT 30A 24V. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 85°C, contact material Silver Cadmium Oxide (AgCdO), termination style Quick Connect - 0.250" (6.3mm).
In Stock: 1,743
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 24VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 277VAC - Nom |
| Coil Current | 70.8 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | Class F |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Operating Temperature | -55°C ~ 85°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
Submit your RFQ for T92P11D22-24 and get a quote within 24 hours.
