TE Connectivity Potter & Brumfield Relays

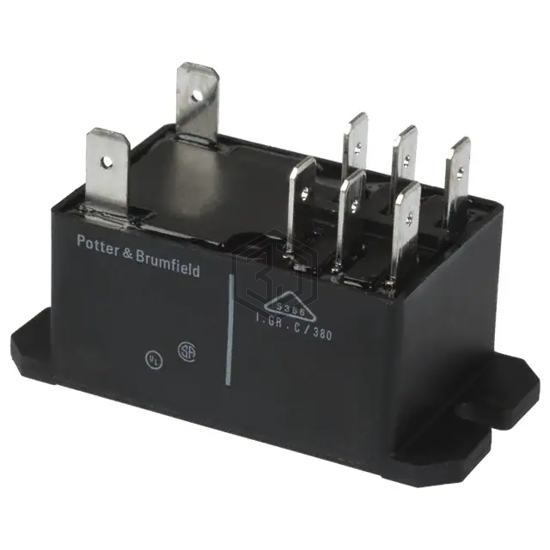

RELAY GEN PURPOSE DPDT 30A 120V
T92P11A12-120 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE DPDT 30A 120V. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 65°C, contact material Silver Cadmium Oxide (AgCdO), termination style PC Pin.
In Stock: 33
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 120VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 277VAC - Nom |
| Coil Current | 33.3 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | Class F |
| Must Operate Voltage | 96 VAC |
| Must Release Voltage | 12 VAC |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Operating Temperature | -55°C ~ 65°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
Submit your RFQ for T92P11A12-120 and get a quote within 24 hours.
