TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 10A 5V

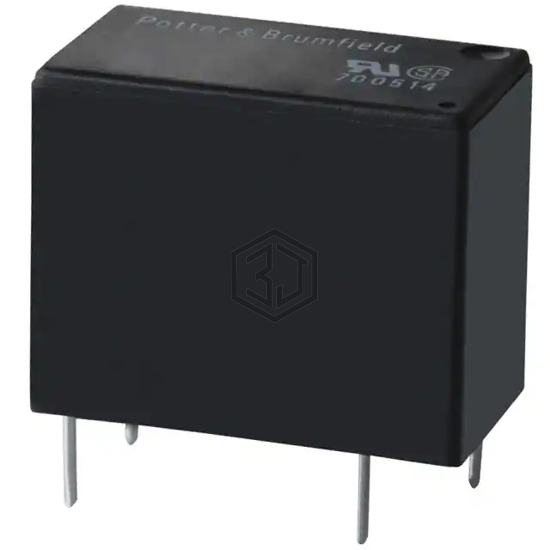

T77S1D10-05 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPST 10A 5V. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 85°C, contact material Silver Cadmium Oxide (AgCdO), termination style PC Pin.
In Stock: 3,536
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC, 30VDC - Max |
| Coil Current | 90 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.25 VDC |
| Operate Time | 10 ms |
| Release Time | 4 ms |
| Operating Temperature | -30°C ~ 85°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
