TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 10A 12V

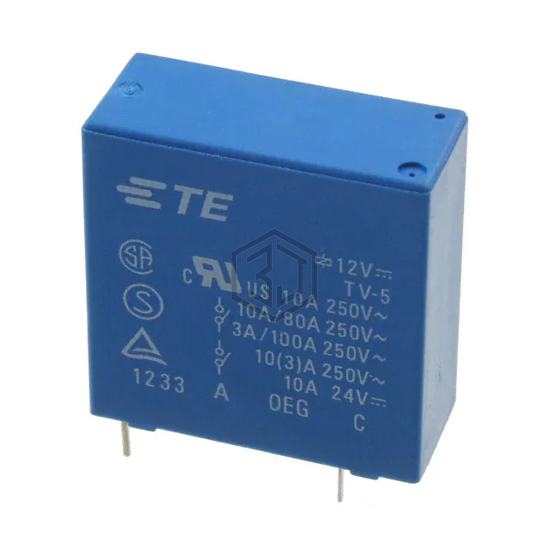

SDT-SS-112DM,000 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPST 10A 12V. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 60°C, contact material Silver Tin Oxide Indium Oxide (AgSnOInO), termination style PC Pin.
In Stock: 181
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC, 24VDC - Max |
| Coil Current | 44.4 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | - |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Release Time | 8 ms |
| Operating Temperature | -30°C ~ 60°C |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Relay Type | General Purpose |
Submit your RFQ for SDT-SS-112DM,000 and get a quote within 24 hours.
