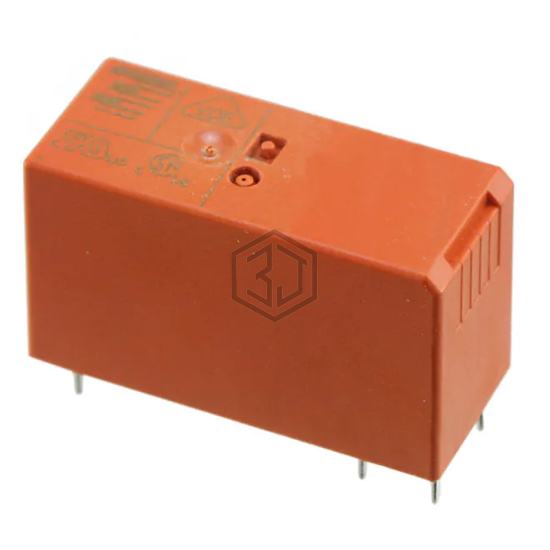

TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 16A 12V
RTT3TA12 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPST 16A 12V. Key specifications: mounting type Through Hole, operating temperature -10°C ~ 85°C, contact material Silver Tin Oxide (AgSnO), Tungsten (W), termination style PC Pin.
In Stock: 852
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 400VAC - Max |
| Coil Current | 33.3 mA |
| Coil Type | Latching, Single Coil |
| Features | Test Button |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | - |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Operating Temperature | -10°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO), Tungsten (W) |
| Relay Type | General Purpose |
Submit your RFQ for RTT3TA12 and get a quote within 24 hours.
