TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 16A 24V

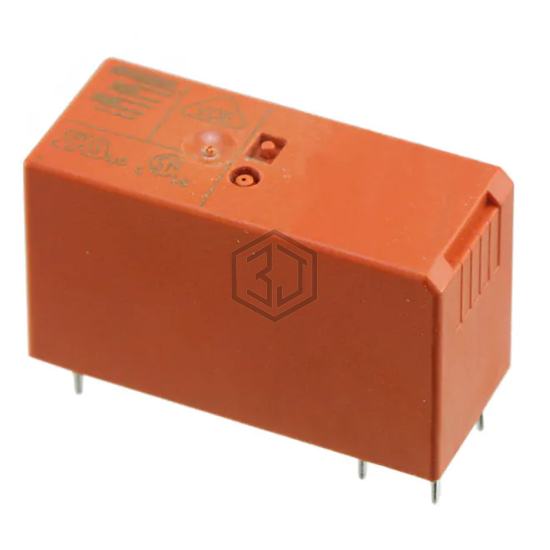

RTS3T024 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPST 16A 24V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, contact material Silver Tin Oxide (AgSnO), Tungsten (W), termination style PC Pin.
In Stock: 172
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 400VAC - Max |
| Coil Current | 16.7 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class F |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO), Tungsten (W) |
| Relay Type | General Purpose |
Submit your RFQ for RTS3T024 and get a quote within 24 hours.
