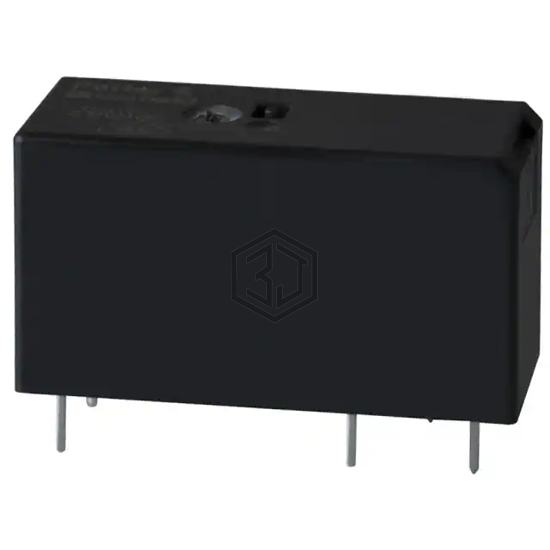

TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 12A 12V
RTB14012F is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPDT 12A 12V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, contact material Silver Nickel (AgNi), termination style PC Pin.
In Stock: 47,369
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 12 A |
| Switching Voltage | 400VAC - Max |
| Coil Current | 33.3 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 8 ms |
| Release Time | 6 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) |
| Relay Type | General Purpose |
Submit your RFQ for RTB14012F and get a quote within 24 hours.
