TE Connectivity Potter & Brumfield Relays

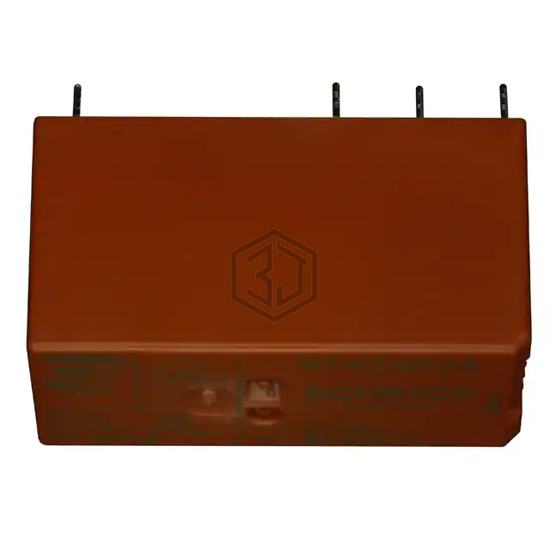

RELAY GEN PURPOSE DPDT 8A 12V
RT424A12 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE DPDT 8A 12V. Key specifications: mounting type Through Hole, operating temperature -10°C ~ 85°C, contact material Silver Nickel (AgNi), termination style PC Pin.
In Stock: 12,917
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 400VAC - Max |
| Coil Current | 33.3 mA |
| Coil Type | Latching, Single Coil |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class F |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | - |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Operating Temperature | -10°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) |
| Relay Type | General Purpose |
Submit your RFQ for RT424A12 and get a quote within 24 hours.
