TE Connectivity Potter & Brumfield Relays

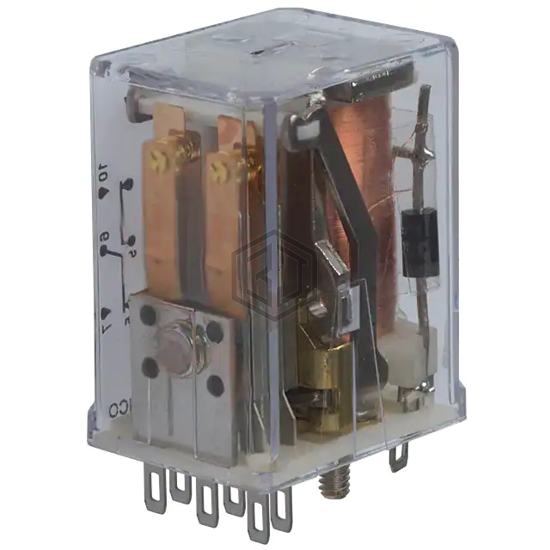

RELAY GEN PURPOSE DPDT 5A 115V
R10-E1X2-V15.0K is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE DPDT 5A 115V. Key specifications: mounting type Socketable, operating temperature -55°C ~ 75°C, contact material Silver Cadmium Oxide (AgCdO), termination style Plug In.
In Stock: 7,695
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 115VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 120VAC, 30VDC - Max |
| Coil Current | 7.7 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 86 VDC |
| Must Release Voltage | - |
| Operate Time | - |
| Release Time | - |
| Operating Temperature | -55°C ~ 75°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
