TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 12A 115V

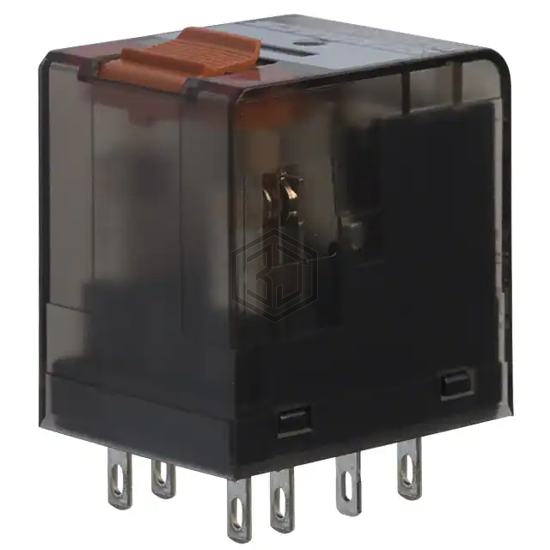

PT270615 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE DPDT 12A 115V. Key specifications: mounting type Socketable, operating temperature -40°C ~ 70°C, contact material Silver Nickel (AgNi), termination style Plug In, Quick Connect - 0.110" (2.8mm).
In Stock: 116
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 115VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 12 A |
| Switching Voltage | 400VAC - Max |
| Coil Current | - |
| Coil Type | Non Latching |
| Features | Mechanical Indicator, Test Button |
| Termination Style | Plug In, Quick Connect - 0.110" (2.8mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 92 VAC |
| Must Release Voltage | 34.5 VAC |
| Operate Time | - |
| Release Time | - |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Relay Type | General Purpose |
Submit your RFQ for PT270615 and get a quote within 24 hours.
