TE Connectivity Potter & Brumfield Relays

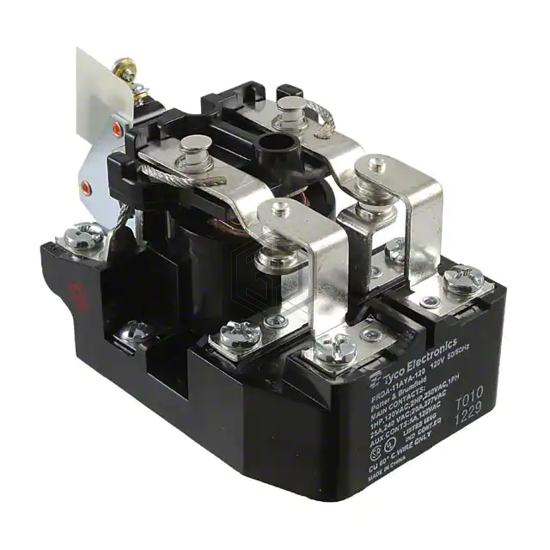

RELAY GEN PURPOSE DPDT 25A 120V
PRDA-11AYA-120 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE DPDT 25A 120V. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 45°C, contact material Silver (Ag), termination style Screw Terminal.
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 120VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 25 A |
| Switching Voltage | 600VAC, 125VDC - Max |
| Coil Current | 85 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Screw Terminal |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 102 VAC |
| Must Release Voltage | 12 VAC |
| Operate Time | 40 ms |
| Release Time | 20 ms |
| Operating Temperature | -55°C ~ 45°C |
| Contact Material | Silver (Ag) |
| Relay Type | General Purpose |
Submit your RFQ for PRDA-11AYA-120 and get a quote within 24 hours.
